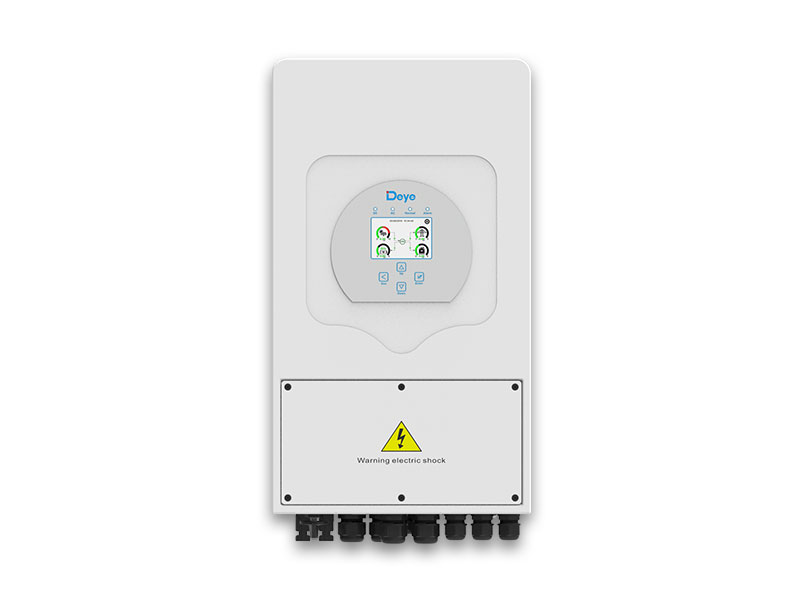

Deye 5kW 48V Single Phase Hybrid Inverter

⚡ Deye 5kW Hybrid Inverter | 48V | MPPT | Pure Sine Wave | Grid-Tie & Off-Grid Ready

🔋 Smart Energy Solution for Homes & Small Commercial Installations

The Deye 5kW 48V Single Phase Hybrid Inverter is a high-performance solution designed for residential homes, small businesses, and energy storage systems. Whether you’re looking to reduce energy bills or implement a reliable backup power system, this inverter provides seamless integration with the grid and battery storage. Featuring dual MPPT inputs for optimal solar harvesting and 48V battery compatibility, the Deye 5kW inverter ensures reliable, efficient, and cost-effectivesolar power.

✅ Key Features:

• ✔️ 5,000W Pure Sine Wave Output – Ideal for residential and small commercial applications

• ☀️ Dual MPPT Inputs – Maximize energy yield with two independent solar arrays

• 🔋 48V Battery Compatibility – Supports lithium-ion, AGM, and gel batteries

• 🔄 Grid-Tie + Off-Grid Ready – Works seamlessly with grid or operates independently without the need for batteries

• 📱 Built-in Wi-Fi Monitoring – Remotely track system performance via smartphone or web portal

• 🛡️ Comprehensive Protection Features – Surge protection, overload, short-circuit, and over-temperature protection

• 💡 Batteryless Operation – Can operate as a grid-tied inverter without requiring batteries

🌞 Solar PV Input:

• Max PV Input Power: 6,500W

• Max PV Voltage: 600VDC

• MPPT Operating Range: 150V – 550VDC

• Number of MPPTs: 2

• Max Input Current per MPPT: 13A + 13A

⚡ AC Output (Single Phase):

• Rated Output Power: 5,000W

• Output Voltage: 230VAC

• Frequency: 50/60Hz (Auto-detect)

• Surge Power: Up to 7,500W

• Power Factor: >0.99

• Max Efficiency: 97.6%

🔋 Battery Compatibility:

• Battery Voltage Range: 48VDC

• Max Charge/Discharge Current: 100A

• Supported Battery Types:

  • Lithium-ion (via RS485 BMS)

  • AGM / GEL (Lead-Acid)

• Programmable Charge/Discharge Modes

📐 Product Specifications:

• Dimensions: 330mm (W) x 580mm (H) x 232mm (D)

• Weight: Approx. 20 kg

• Cooling Method: Intelligent Fan Cooling

• Protection Rating: IP65 (Indoor & Outdoor Use)

• Operating Temperature: -25°C to 60°C

• Communication Ports: Wi-Fi, CAN, RS485, USB, Dry Contact

📦 What’s in the Box?

• 1 × Deye 5kW Hybrid Inverter

• 1 × Wi-Fi Monitoring Dongle

• 1 × Wall Mount Kit

• 1 × User Manual & Quick Start Guide

🏠 Perfect For:

• Residential Solar Power Systems

• Small Commercial & Retail Spaces

• Backup Power Systems

• Off-Grid Homes and Cabins

• Grid-Tied Solar Installations

• Energy Storage Systems
