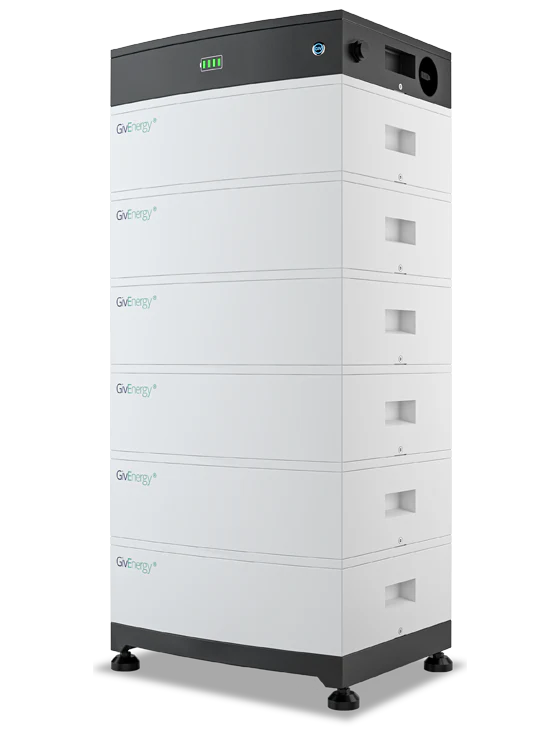

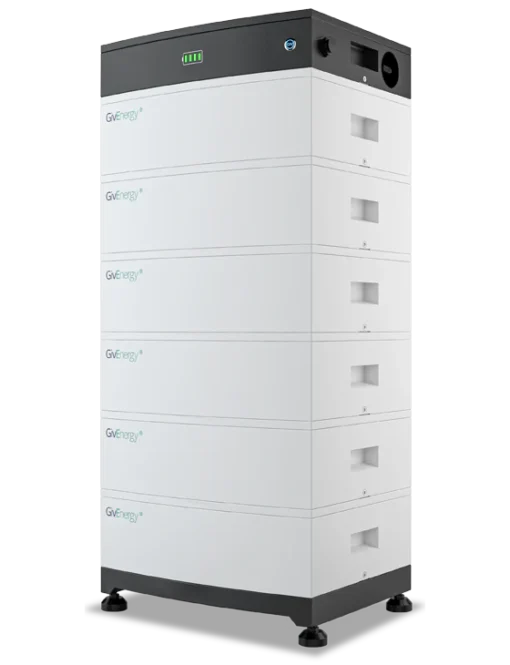

GivEnergy 20.4kWh HV Li-Ion Battery Stack – Including BMU Cable and Base

20.4kWh GivEnergy HV Li-Ion Battery Stack

🔋 Compact, Intelligent Energy Storage for 3-Phase GivEnergy Hybrid Systems
This 20.4kWh High Voltage Battery Stack from GivEnergy is a robust and modular solution designed to deliver reliable performance in commercial and high-demand residential solar installations. Pre-assembled with essential components including a BMU and stack base, it integrates seamlessly with GivEnergy 3-Phase Hybrid Inverters.

⚙️ System Composition

📦 What’s Included:

• 6 x GIV-BAT-3.4-HV – 3.4kWh High Voltage Li-Ion Battery Modules

• 1 x GIV-BAT-HV-BMU – High Voltage Battery Management Unit (Top & Bottom Housing)

• Pre-cabled Base Assembly for secure stacking and simplified installation

🔑 Key Technical Features

🔋 Total Capacity: 20.4kWh
⚡ Max Charge/Discharge Current: 25A / 25A
🔄 Depth of Discharge (DoD): 100%
♾️ Life Cycles: Unlimited (within 12-year warranty)
💡 C Rating: 0.5C
🔌 Nominal Voltage: 460V DC
📉 Operating Voltage Range: 200V – 600V DC
🔗 Communication Protocol: CAN BUS
🔧 Compatibility: 3-Phase GivEnergy Hybrid Inverter Only
🛡️ Warranty: 12 Years (with required online connection and training compliance)

🔧 Professional Installation by Sun Vault Energy

To maintain warranty validity and ensure correct operation, all GivEnergy battery systems must be:
✅ Installed by a certified GivEnergy-trained technician
✅ Commissioned via the GivEnergy Online Portal
✅ Connected to the Internet at all times

⚠️ Installation by untrained personnel or failure to connect to the internet will VOID the warranty. Sun Vault Energy ensures full compliance with manufacturer requirements.

📝 Important Notes

• No additional accessories are required beyond the BMU, which is included

• Ideal for on-grid backup, peak shaving, and energy optimization in conjunction with GivEnergy PCS or Hybrid 3PH inverters

• Remote performance monitoring and diagnostics available via GivEnergy portal
