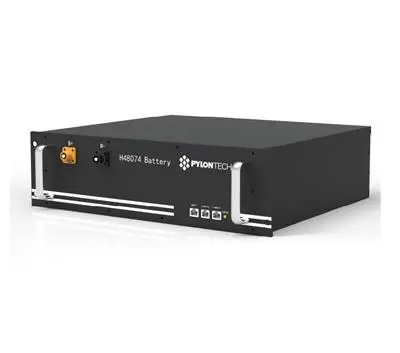

Pylontech H48074 3.55kWh 48V HV Li-Ion Solar Battery

🔋 Pylontech H48074 3.55kWh 48V High Voltage Lithium-Ion Battery

⚡ Key Features
✅ 3.55kWh usable energy per module
✅ High-voltage (HV) system — designed for large installations
✅ Modular architecture for easy scalability
✅ 6000+ cycles at 80% DoD
✅ Built-in Battery Management System (BMS)
✅ Safe and reliable LiFePO₄ chemistry
✅ Compact rack-mountable design
✅ Perfect compatibility with HV inverters

📐 Specifications

• Nominal Voltage: 48V

• Nominal Capacity: 74Ah

• Energy per Unit: 3.55kWh

• Battery Type: LiFePO₄ (Lithium Iron Phosphate)

• Max Charge/Discharge Current: 37A

• Cycle Life: >6000 @ 80% DoD

• Communication Interfaces: RS485 / CAN

• Dimensions: 442mm × 420mm × 100mm

• Weight: 33kg

• Mounting: Rack-mounted or cabinet-based

🔗 Scalability & Integration
🔹 Connect multiple units for increased capacity
🔹 Ideal for large residential and commercial high-voltage setups
🔹 Compatible with Pylontech BMS and HV inverters

📦 What’s in the Box

• 1 x Pylontech H48074 HV Battery Module

• Communication & Link Cables

• User Manual

🛡️ Warranty
✔️ 10-Year Manufacturer’s Warranty
⚠️ Installation must be performed by a certified technician to maintain warranty validity.
