Pylontech UP2500 2.84kWh 24V Li-Ion Battery

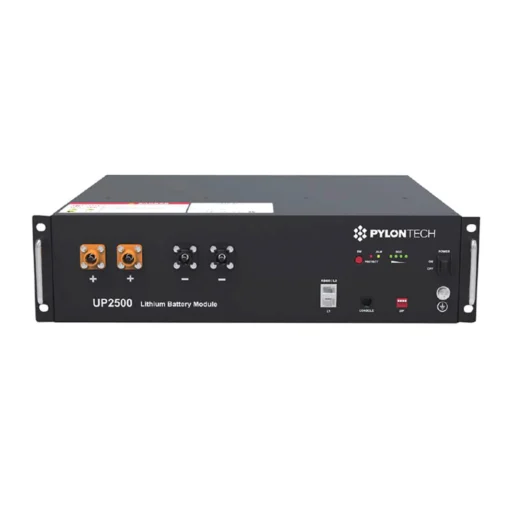

🔋 Pylontech UP2500 2.84kWh 24V Lithium-Ion Battery

⚡ Key Features
✅ 2.84kWh usable energy per unit
✅ 24V system – perfect for smaller or modular installations
✅ LiFePO₄ chemistry – safe and thermally stable
✅ 6000+ cycles @ 90% DoD
✅ Built-in intelligent BMS
✅ Scalable – up to 20 units in parallel
✅ Compatible with major inverter brands
✅ Compact and easy to install

📐 Specifications

• Battery Type: LiFePO₄ (Lithium Iron Phosphate)

• Nominal Voltage: 24V

• Nominal Capacity: 110Ah

• Energy per Unit: 2.84kWh

• Max Charge/Discharge Current: 62A

• Cycle Life: >6000 Cycles @ 90% DoD

• Communication Ports: RS485, CAN

• Dimensions: 442mm x 420mm x 132mm

• Weight: 27kg

• Installation Type: Rack or cabinet mountable

🔗 Scalability & Integration
🔹 Supports up to 20 modules in parallel
🔹 Seamless integration with hybrid and off-grid inverters
🔹 Ideal for home backup systems, small businesses, and modular energy setups

📦 What’s in the Box

• 1 x Pylontech UP2500 24V 2.84kWh Battery

• 1 x Set of Communication & Power Cables

• 1 x User Manual

🛡️ Warranty
✔️ 7-Year Standard Warranty (extendable to 10 years)
⚠️ Must be installed by a certified professional to ensure warranty validity
