⚡ High-Capacity Energy You Can Rely On

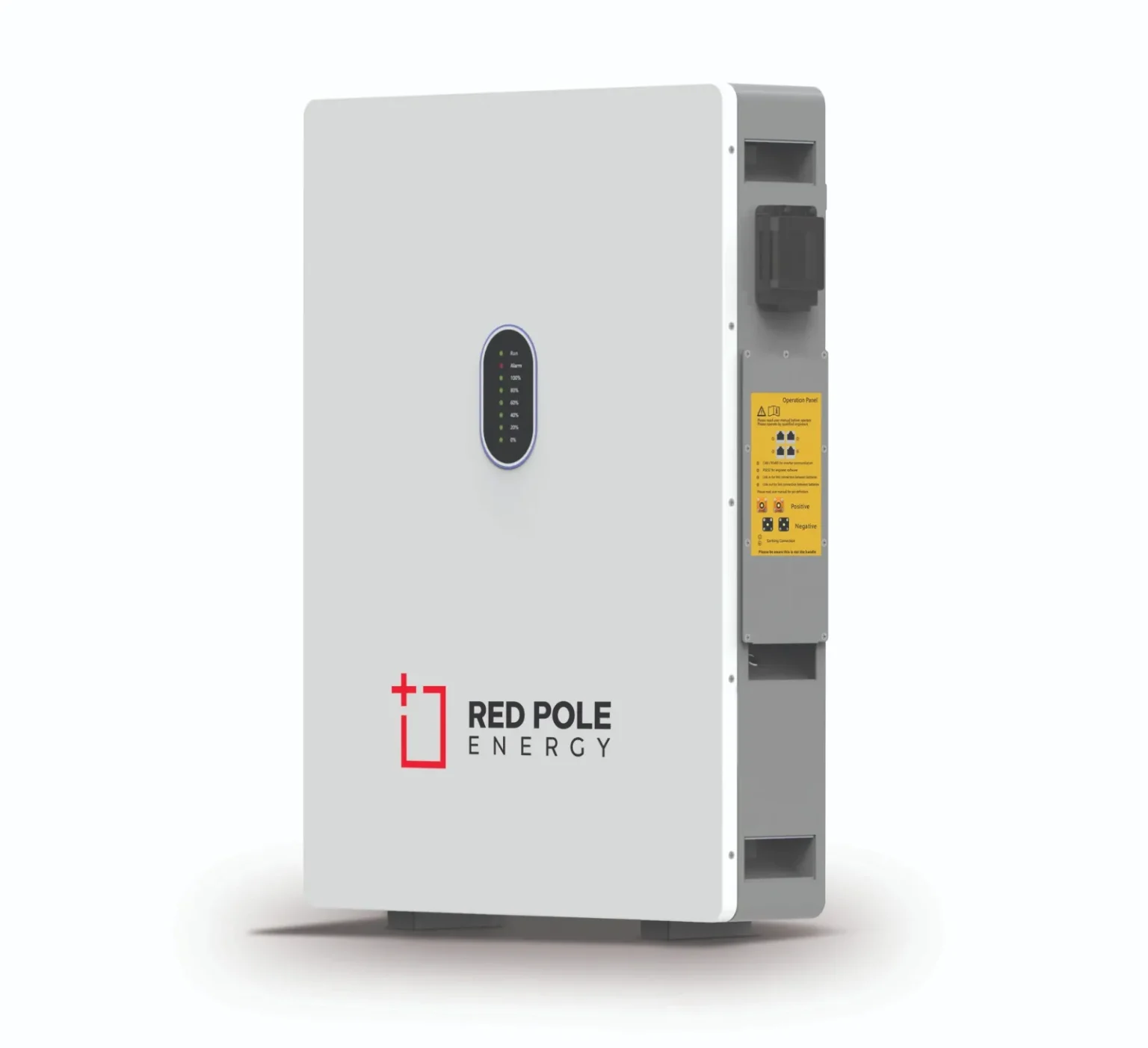

The Red Pole Energy Vital 10 is a high-performance 51.2V lithium battery engineered for demanding energy applications. Delivering 10.24kWh of clean, stable power, this battery is ideal for home solar setups, commercial backup systems, and off-grid solutions.
Built with A-grade LiFePO₄ cells, the Vital 10 is designed for long service life, high depth of discharge, and safe daily use. It includes an intelligent Battery Management System (BMS) to optimize performance and protect against voltage, current, and temperature irregularities.
🌟 Key Features
-
🔋 10.24kWh Usable Energy – Large capacity for larger systems
-
💯 100% Depth of Discharge (DoD) – Maximum energy utilization
-
🔁 6000+ Cycles at 80% DoD – Long-term performance and durability
-
🛡️ Built-in BMS – Real-time safety and cell balancing
-
🔌 Plug-and-Play – Seamless integration with 48V inverters
-
🖥️ LCD Display – Battery status at a glance (model dependent)
-
🔗 Parallel Connectable – Expandable for higher energy needs
-
🧱 Rugged Casing – Durable SPCC construction for harsh environments
-
🔧 Maintenance-Free Operation – Set it and forget it
📐 Technical Specifications
| Specification | Details |
|---|---|
| Battery Chemistry | LiFePO₄ (Lithium Iron Phosphate) |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah |
| Energy Capacity | 10.24kWh |
| Cycle Life | >6000 cycles @ 80% DoD, 25°C |
| Max Charge Voltage | 58.4V |
| Discharge Cut-Off Voltage | 43.2V |
| Charge Current (Recommended) | 100A |
| Discharge Current (Max) | 150A |
| Internal Resistance | <25mΩ |
| Communication Protocols | CAN / RS485 / RS232 (depending on model) |
| Dimensions (L×W×H) | Approx. 680 × 445 × 220mm (check model) |
| Weight | ±85kg |
| Operating Temp Range | -10°C to 60°C |
| Storage Temp Range | 0°C to 50°C |
| Self-Discharge Rate | <3% per month |
| Installation Type | Wall Mount / Rack Mount Compatible |
| Parallel Support | Yes – Expandable System Design |
| IP Rating | IP20 or higher |
📦 What’s in the Box
-
1 × Red Pole Energy Vital 10 Battery
-
1 × Set of DC Battery Cables (Positive & Negative)
-
1 × Ethernet or Communication Cable
-
1 × User Manual
🧾 Warranty & Installation Notes
✅ 5-Year Limited Warranty
⚠️ To activate and maintain your warranty, the battery must be installed by a qualified electrician with a valid wireman’s license. A Certificate of Compliance (COC) specific to the solar or backup system installation is mandatory. Installations must adhere to SANS 10142 regulations.
