⚡ Reliable & Efficient Energy Storage Solution

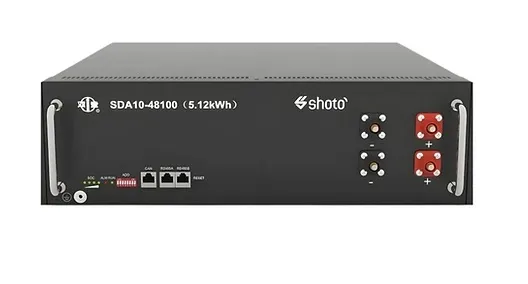

The Shoto 5.12kWh Lithium Ion Battery offers a high-performance energy storage option with a nominal capacity of 100Ah at 51.2V, delivering a total usable energy of 5.12kWh. Built using advanced Lithium Iron Phosphate (LiFePO₄) technology, this battery ensures safety, durability, and excellent thermal stability for both on-grid and off-grid applications.
Designed for long cycle life and high energy efficiency, the Shoto battery is perfect for residential solar systems, backup power, and small commercial energy storage setups.
🌟 Key Features
🔋 5.12kWh Capacity – Ideal for medium power needs
💯 High Depth of Discharge – Maximize usable battery energy
🔄 Long Cycle Life – 6000+ cycles at 80% Depth of Discharge
🛡️ Advanced Battery Management System (BMS) – Comprehensive protection including overcharge, over-discharge, temperature control, and short circuit protection
🔌 Flexible Installation – Suitable for wall or rack mounting
🔗 Expandable – Supports parallel connections for increased storage capacity
🔧 Maintenance-Free – Robust and reliable design with minimal upkeep required
📐 Technical Specifications
| Specification | Details |
|---|---|
| Battery Chemistry | Lithium Iron Phosphate (LiFePO₄) |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Energy Capacity | 5.12kWh |
| Cycle Life | >6000 cycles @ 80% DoD, 25°C |
| Max Charge Voltage | ~58.4V |
| Discharge Cut-Off Voltage | ~43.2V |
| Recommended Charge Current | 50A |
| Max Discharge Current | 100A |
| Internal Resistance | Low internal resistance for efficient power delivery |
| Communication | RS485 / CAN (varies by model) |
| Dimensions | Compact design (varies by model) |
| Weight | Approx. 44kg |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | 0°C to 50°C |
| Self-Discharge Rate | <3% per month |
| Installation Type | Wall or rack mount |
| Expandable | Yes, supports parallel connections |
📦 Included in Package
1 × Shoto 5.12kWh Lithium Ion Battery
Installation cables and connectors (as required)
User manual and safety guide
🛠️ Warranty & Compliance
✅ 5-Year Warranty
⚠️ Professional installation by a certified electrician is required for warranty validity. Installation must comply with local electrical codes and standards.
