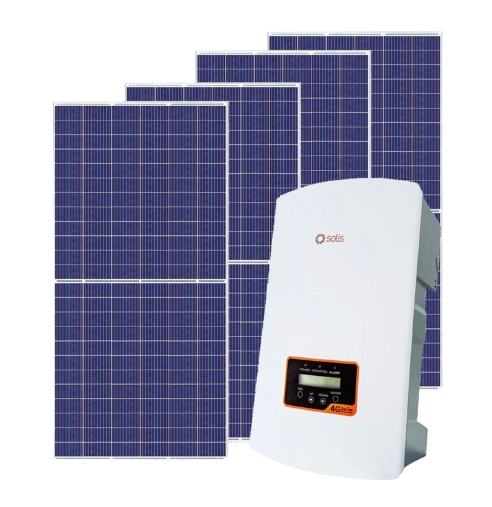

Solis 20.0kW Dual MPPT 3-Phase Grid Tied Solar Kit

High-Capacity Solar Power for Large Homes, Businesses, and Commercial Properties

The Solis 20.0kW Dual MPPT 3-Phase Grid Tied Solar Kit is engineered for users who require large-scale, reliable, and cost-effective renewable energy. With high-efficiency Canadian Solar HiKu panels paired with the trusted Solis 20kW inverter, this system delivers outstanding performance and energy yields, making it perfect for commercial setups, office parks, farms, or larger households.

⚡ Kit Components

• 54 x Canadian Solar HiKu 375W Super High Power Mono PERC Solar Panels

• 1 x Solis 4G 20.0kW Dual MPPT 3-Phase Grid Tie Inverter

• 1 x K&N 63A Three-Phase AC Switch Disconnector

• 3 x K&N 21A/800V – 20A/1000V Single String DC Switch Disconnectors

• 1 x 1000V SolarEdge Protection Box Type 2 (for SE 25/27.7K Inverter)

• 4 x MC4 Pre-Terminated Cables 2m (Pack of 2)

• 2 x Multi-Contact Cable Coupler Packs – MC4

• 20m x Sustainable 6mm² Black Panelflex Cable

• 20m x Sustainable 6mm² Red Panelflex Cable

• 20m x Sustainable 6mm² Black Double-Insulated Halogen-Free Solar Cable

• 20m x Sustainable 6mm² Red Double-Insulated Halogen-Free Solar Cable

• 1 x Optional Roof Mounting System

🌞 PV Performance Estimation

Installation Data (MCS Calculation):

• Installed Capacity: 20.25 kWp

• Orientation: 0° (South-facing)

• Inclination: 35° from horizontal

Performance Calculation:

• Specific Yield: 1,667 kWh/kWp

• Shade Factor: 1.00

• Estimated Annual Output: 33,764 kWh

This means your system can generate enough power to cover extensive energy needs, reduce grid reliance, and significantly lower monthly electricity costs.

🔧 Technical Data

Canadian Solar HiKu 375W Panels

• Quantity: 54 panels

• Power Rating: 375 Wp each

• Array Power: 20,250 Wp

• Voc (STC): 41 V

• Vmpp (STC): 34.3 V

• Impp (STC): 10.94 A

• Isc (STC): 11.61 A

Solis 20kW 4G 3-Phase Dual MPPT Inverter

• Rated AC Power: 20,000 W

• Phases: 3

• MPPT Inputs: 2

• Max DC Voltage: 1000 V

• Max DC Current: 44 A

• Operating Voltage Range: 180 V – 850 V

Electrical Setup

• String Quantity: 3 (2×18 / 1×18)

• String Voc (0°): 787.82 V

• String Vmpp (0°): 671.42 V

• Voltage Drop: 1.48% over 20m distance with 6mm² cables

🔑 Key Benefits

• Commercial-grade performance for large-scale energy demands.

• Canadian Solar HiKu panels ensure high efficiency, durability, and power density.

• Dual MPPT inverter technology optimizes energy harvesting across different panel strings.

• Three-phase compatibility makes it ideal for industrial and commercial installations.

• Comprehensive safety components provide protection against surges, overloads, and faults.

⚠️ Important Notice

For safety and compliance, this solar kit must be installed by qualified professionals according to local wiring regulations.

🌍 At Solar Power Africa, we deliver scalable, reliable, and future-ready solar solutions to meet Africa’s growing energy needs. The Solis 20.0kW Dual MPPT 3-Phase Grid Tied Solar Kit is the perfect investment for businesses and property owners ready to embrace clean energy at scale
