Solis 40.0kW Dual MPPT 3-Phase Grid Tied Solar Kit

Solis 40.0kW Dual MPPT 3-Phase Grid Tied Solar Kit

Harness the power of the sun with the Solis 40.0kW Dual MPPT 3-Phase Grid Tied Solar Kit, a high-performance system designed for large-scale residential or commercial energy needs. This kit combines top-quality solar panels with a robust quad-MPPT inverter to deliver reliable and efficient energy production year-round.

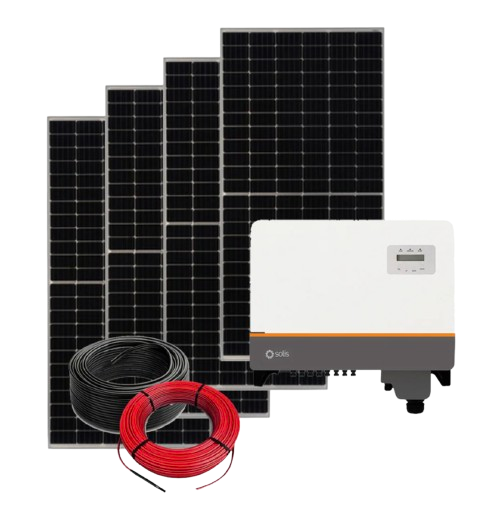

System Components

• 76 x JA Solar 545W Mono Percium Half-cell Solar Panels

• 1 x Solis S5 40.0kW Quad MPPT 3-Phase Grid Tie Inverter

• 1 x K&N Three Phase AC Switch Disconnector 80A

• 9 x MC4 Pre-terminated cable 2m (Pack of 2)

• 3 x Multi Contact Cable Coupler Pack – MC4

• 20m x Sustainable 6mm² Black Panelflex

• 20m x Sustainable 6mm² Red Panelflex

• 100m x Sustainable 6mm² Black Double Insulated Halogen Free Solar Cable

• 1 x PV on Roof and Hazard Labels Pack

• 1 x Optional Roof Mounting System

Solar Panel Specifications

• Cell Type: Mono

• Weight: 28.6 kg ±3%

• Dimensions: 2279 × 1134 × 35 mm

• Number of Cells: 144 (6 × 24)

• Junction Box: IP67, 3 diodes

• Connector: QC4.10

• Rated Maximum Power (Pmax): 545 W

• Open Circuit Voltage (Voc): 49.75 V

• Maximum Power Voltage (Vmp): 41.80 V

• Short Circuit Current (Isc): 13.93 A

• Maximum Power Current (Imp): 13.04 A

• Module Efficiency: 21.1%

• Power Tolerance: -0 ~ +5 W

• STC: Irradiance 1000 W/m², cell temperature 25°C, AM 1.5G

Inverter Specifications – Solis 40kW 5G 3 Phase Quad MPPT

• Phases: 3

• Number of MPPT: 4

• Rated AC Power: 44,000 W

• Max DC Current: 128.00 A

• Max DC Voltage: 1100 V

• PP Voltage: Min 200 V, Max 1100 V

Electrical Details

• Quantity: 1

• Distance to Array: 20 m

• Cable Area: 6 mm²

• Voltage Drop: 1.33%

PV Performance Estimation

• Installed Capacity (kWp, STC): 41.040 kWp

• Orientation: 0° from South

• Inclination: 35° from horizontal

• Shade Factor (SF): 1.00

• Estimated Annual Output: 72,031 kWh

Important Information

All solar products, power systems, water heating, and gas products, including their components, must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Solar Power Africa will not be held liable for any product malfunctions resulting from incorrectly installed systems.
