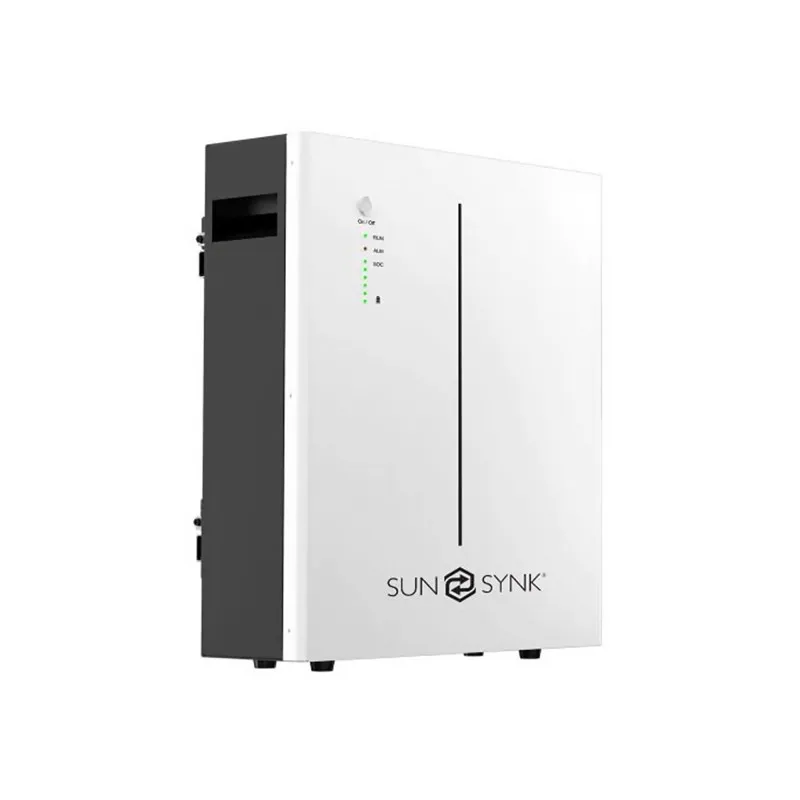

Sunsynk Wall Mount 5.32kWh 51.2V Lithium Battery

🌟 Key Features

• 🔋 More Usable Energy: 100% Depth of Discharge (DoD)

• 🧩 Modular & Scalable: Expandable from 5.32kWh to 42.56kWh

• 🛡️ Safe & Reliable: Advanced LiFePO₄ chemistry with 6000 cycles

• 🛠️ Easy Installation: Supports both wall-mounting and floor stands

• ⚙️ Plug & Play Setup: One-button power, auto ID assignment

• 🔄 Compatible: Works with most leading hybrid inverter brands

📐 Technical Specifications

Electrical Performance

• Nominal Voltage: 51.2V

• Nominal Capacity: 104Ah

• Total Energy: 5.32kWh

• Nominal Power: 2.5kW

• Max Power Output: 5kW

• Max Charge/Discharge Current: 100A

• Short Circuit Current: 350A

• Depth of Discharge: 100%

• Cycle Life: 6000 Cycles @ 80% DoD / 25°C

Communications & Monitoring

• Interfaces: RS485, RS232, CAN

• Indicators: LED + State of Charge (SOC) Display

Design & Environmental

• Dimensions: 450 × 150 × 533 mm

• Weight: 45kg

• Mounting: Wall-Mount / Floor Stand

• IP Rating: IP20

• Operating Temp: -20°C to +60°C

• Humidity: ≤95% RH

• Altitude Limit: ≤2000m

• Storage Temp:

  • ≤25°C (12 months)

  • ≤35°C (6 months)

  • ≤45°C (3 months)

Battery Chemistry

• Cell Type: Lithium Iron Phosphate (LiFePO₄)

• Parallel Scalability: Up to 8 Units

Warranty: 5 Years
